#include <FFBoardMain.h>

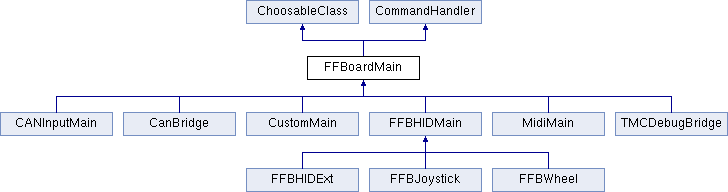

Inheritance diagram for FFBoardMain:

Public Member Functions
virtual const ClassIdentifier	getInfo ()

const ClassType	getClassType () override
	returns the used classchooser selection id of this instance More...

	FFBoardMain ()

virtual	~FFBoardMain ()

virtual void	usbInit ()

virtual void	update ()

virtual void	cdcRcv (char Buf, uint32_t Len)

virtual void	cdcRcvReady (uint8_t itf)

virtual void	usbSuspend ()

virtual void	usbResume ()

virtual CommandStatus	command (const ParsedCommand &cmd, std::vector< CommandReply > &replies)

virtual std::string	getHelpstring ()

Public Member Functions inherited from ChoosableClass
virtual	~ChoosableClass ()

uint16_t	getSelectionID ()

Public Member Functions inherited from CommandHandler
	CommandHandler (const char *clsname, uint16_t clsid, uint8_t instance=0)

virtual	~CommandHandler ()

virtual bool	hasCommands ()

virtual void	setCommandsEnabled (bool enable)

void	registerCommands ()

virtual CommandStatus	internalCommand (const ParsedCommand &cmd, std::vector< CommandReply > &replies)

virtual std::string	getCommandsHelpstring ()

virtual std::string	getCsvHelpstring ()

virtual uint8_t	getCommandHandlerInstance ()

void	broadcastCommandReply (CommandReply reply, uint32_t cmdId, CMDtype type)

void	sendCommandReplyAsync (CommandReply reply, uint32_t cmdId, CMDtype type, CommandInterface *interface=nullptr)

virtual uint16_t	getCommandHandlerID ()

virtual CmdHandlerInfo *	getCommandHandlerInfo ()

virtual bool	isValidCommandId (uint32_t cmdid, uint32_t ignoredFlags=0, uint32_t requiredFlag=0)

virtual CmdHandlerCommanddef *	getCommandFromName (const std::string &cmd, uint32_t ignoredFlags=0)

virtual CmdHandlerCommanddef *	getCommandFromId (const uint32_t id, uint32_t ignoredFlags=0)

template<typename ID >
void	registerCommand (const char cmd, const ID cmdid, const char help=nullptr, uint32_t flags=0)

Static Public Member Functions
static bool	isCreatable ()

Static Public Member Functions inherited from ChoosableClass
static bool	isCreatable ()

Static Public Member Functions inherited from CommandHandler
static void	logSerial (std::string string)
	Send a log formatted sequence. More...

static void	logSerialDebug (std::string string)
	Send a log formatted sequence if debug is on. More...

static bool	logsEnabled ()

static void	setLogsEnabled (bool enabled)

static uint32_t	getClassIdFromName (const char *name)

static const char *	getClassNameFromId (const uint32_t id)

static CommandHandler *	getHandlerFromHandlerId (const uint16_t cmdhandlerID)

static CommandHandler *	getHandlerFromId (const uint16_t id, const uint8_t instance=0xFF)

static CommandHandler *	getHandlerFromClassName (const char *name, const uint8_t instance=0xFF)

static std::vector< CommandHandler * >	getHandlersFromClassName (const char *name)

static std::vector< CommandHandler * >	getHandlersFromId (const uint16_t id)

static bool	isInHandlerList (CommandHandler *handler)

static std::string	getAllHelpstrings ()

static std::vector< CommandHandler * > &	getCommandHandlers ()

template<typename TVal >
static CommandStatus	handleGetSet (const ParsedCommand &cmd, std::vector< CommandReply > &replies, TVal &value)

template<typename TVal , class cls , class cls1 >
static CommandStatus	handleGetSetFunc (const ParsedCommand &cmd, std::vector< CommandReply > &replies, TVal &value, void(cls1::setfunc)(TVal), cls obj)

template<typename TVal , class cls , class cls1 , class cls2 >
static CommandStatus	handleGetFuncSetFunc (const ParsedCommand &cmd, std::vector< CommandReply > &replies, TVal(cls1::getfunc)(), void(cls2::setfunc)(TVal), cls *obj)

template<typename TVal , class cls , class cls1 >
static CommandStatus	handleGetFuncSet (const ParsedCommand &cmd, std::vector< CommandReply > &replies, TVal &value, TVal(cls1::getfunc)(), cls obj)

Public Attributes
std::unique_ptr< FFBoardMainCommandThread >	commandThread

std::unique_ptr< CDC_CommandInterface >	cdcCmdInterface = std::make_unique<CDC_CommandInterface>()

ErrorPrinter	errorPrinter

SystemCommands	systemCommands
	System command handler. More...

std::unique_ptr< UART_CommandInterface >	uartCmdInterface = std::make_unique<UART_CommandInterface>(115200)

Static Public Attributes
static ClassIdentifier	info ={.name = "Basic (Failsafe)" ,.id=0}

Static Public Attributes inherited from ChoosableClass
static ClassIdentifier	info

Static Public Attributes inherited from CommandHandler
static bool	logEnabled = true

Protected Attributes
std::unique_ptr< USBdevice >	usbdev

Protected Attributes inherited from ChoosableClass
uint16_t	selectionId
	Should only be written by ClassChooser during creation. More...

Protected Attributes inherited from CommandHandler
bool	commandsEnabled = true

std::vector< CmdHandlerCommanddef >	registeredCommands

CmdHandlerInfo	cmdHandlerInfo

Static Protected Attributes
static char	cdcbuf []

Additional Inherited Members
Protected Member Functions inherited from CommandHandler
void	setInstance (uint8_t instance)

virtual void	addCommandHandler ()

virtual void	removeCommandHandler ()

Static Protected Member Functions inherited from CommandHandler
static std::vector< uint16_t > &	getCommandHandlerIds ()

Detailed Description

Definition at line 32 of file FFBoardMain.h.

Constructor & Destructor Documentation

◆ FFBoardMain()

FFBoardMain::FFBoardMain ( )

Definition at line 21 of file FFBoardMain.cpp.

◆ ~FFBoardMain()

FFBoardMain::~FFBoardMain ( )

virtual

Definition at line 94 of file FFBoardMain.cpp.

Member Function Documentation

◆ cdcRcv()

void FFBoardMain::cdcRcv	(	char *	Buf,
		uint32_t *	Len
	)

virtual

Called when data is received on the CDC port

Reimplemented in TMCDebugBridge, and CanBridge.

Definition at line 32 of file FFBoardMain.cpp.

◆ cdcRcvReady()

void FFBoardMain::cdcRcvReady ( uint8_t itf )

virtual

Called by the CDC serial port when data is ready

Definition at line 40 of file FFBoardMain.cpp.

◆ command()

CommandStatus FFBoardMain::command	(	const ParsedCommand &	cmd,
		std::vector< CommandReply > &	replies
	)

virtual

Parameters

[in]	cmd	The parsed command to be executed.
[out]	replies	A vector to return one or multiple reply objects into. Replies to the interface will be generated based on the reply objects. A string reply may not contain start, end and separation markers: [,],\| Other characters are allowed.

Reimplemented from CommandHandler.

Reimplemented in CanBridge, CANInputMain, CustomMain, FFBHIDMain, MidiMain, and TMCDebugBridge.

Definition at line 49 of file FFBoardMain.cpp.

◆ getClassType()

const ClassType FFBoardMain::getClassType ( )

inlineoverridevirtual

returns the used classchooser selection id of this instance

Type of this class. Mainclass, motordriver... Should be implemented by the parent class so it is not in the info struct

Reimplemented from ChoosableClass.

Definition at line 37 of file FFBoardMain.h.

◆ getHelpstring()

std::string FFBoardMain::getHelpstring ( )

virtual

Returns a description of this class

Reimplemented from CommandHandler.

Reimplemented in CanBridge, CANInputMain, CustomMain, FFBHIDMain, MidiMain, and TMCDebugBridge.

Definition at line 90 of file FFBoardMain.cpp.

◆ getInfo()

const ClassIdentifier FFBoardMain::getInfo ( )

virtual

Implements ChoosableClass.

Reimplemented in CANInputMain, CustomMain, FFBHIDExt, FFBJoystick, FFBWheel, MidiMain, TMCDebugBridge, CanBridge, and FFBHIDMain.

Definition at line 25 of file FFBoardMain.cpp.

◆ isCreatable()

static bool FFBoardMain::isCreatable ( )

inlinestatic

Definition at line 36 of file FFBoardMain.h.

◆ update()

void FFBoardMain::update ( )

virtual

Called in the default thread with no delay Can be reimplemented by custom main classes but should not block

Reimplemented in CanBridge, and MidiMain.

Definition at line 71 of file FFBoardMain.cpp.

◆ usbInit()

void FFBoardMain::usbInit ( )

virtual

Called during the startup Should initialize a USBdevice and call registerUsb()

Reimplemented in MidiMain, CANInputMain, FFBHIDExt, FFBJoystick, FFBWheel, and FFBHIDMain.

Definition at line 61 of file FFBoardMain.cpp.

◆ usbResume()

void FFBoardMain::usbResume ( )

virtual

Called when the usb port is connected

Reimplemented in FFBHIDMain.

Definition at line 85 of file FFBoardMain.cpp.

◆ usbSuspend()

void FFBoardMain::usbSuspend ( )

virtual

Called when the usb port is disconnected

Reimplemented in FFBHIDMain.

Definition at line 78 of file FFBoardMain.cpp.

Member Data Documentation

◆ cdcbuf

char FFBoardMain::cdcbuf

staticprotected

Definition at line 67 of file FFBoardMain.h.

◆ cdcCmdInterface

std::unique_ptr<CDC_CommandInterface> FFBoardMain::cdcCmdInterface = std::make_unique<CDC_CommandInterface>()

Definition at line 57 of file FFBoardMain.h.

◆ commandThread

std::unique_ptr<FFBoardMainCommandThread> FFBoardMain::commandThread

Definition at line 56 of file FFBoardMain.h.

◆ errorPrinter

ErrorPrinter FFBoardMain::errorPrinter

Definition at line 58 of file FFBoardMain.h.

◆ info

ClassIdentifier FFBoardMain::info ={.name = "Basic (Failsafe)" ,.id=0}

static

Definition at line 34 of file FFBoardMain.h.

◆ systemCommands

SystemCommands FFBoardMain::systemCommands

System command handler.

Definition at line 59 of file FFBoardMain.h.

◆ uartCmdInterface

std::unique_ptr<UART_CommandInterface> FFBoardMain::uartCmdInterface = std::make_unique<UART_CommandInterface>(115200)

Definition at line 62 of file FFBoardMain.h.

◆ usbdev

std::unique_ptr<USBdevice> FFBoardMain::usbdev

protected

Definition at line 66 of file FFBoardMain.h.

The documentation for this class was generated from the following files:
