FFBJoystick Class Reference

#include <FFBJoystick.h>

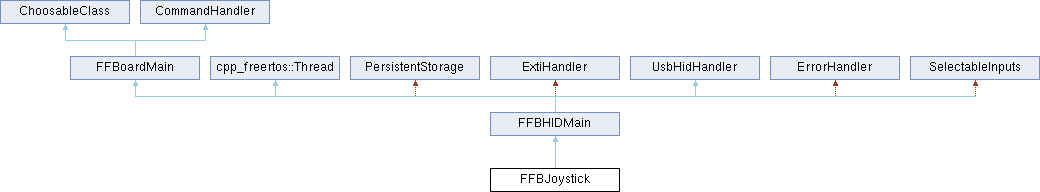

Inheritance diagram for FFBJoystick:
FFBHIDMain FFBoardMain cpp_freertos::Thread PersistentStorage ExtiHandler UsbHidHandler ErrorHandler ChoosableClass CommandHandler

Public Member Functions

 FFBJoystick ()

virtual ~FFBJoystick ()

const ClassIdentifier getInfo ()

void usbInit () override

- Public Member Functions inherited from FFBHIDMain
 FFBHIDMain (uint8_t axisCount)

virtual ~FFBHIDMain ()

void setFFBEffectsCalc (std::shared_ptr< EffectsControlItf > ffb, std::shared_ptr< EffectsCalculator > effects_calc)

CommandStatus command (const ParsedCommand &cmd, std::vector< CommandReply > &replies)

void registerCommands ()

virtual std::string getHelpstring ()

void setBtnTypes (uint16_t btntypes)

void addBtnType (uint16_t id)

void clearBtnTypes ()

void setAinTypes (uint16_t aintypes)

void addAinType (uint16_t id)

void clearAinTypes ()

void usbSuspend ()

void usbResume ()

void saveFlash ()

void restoreFlash ()

void Run ()

void updateControl ()

void emergencyStop (bool reset)

uint32_t getRate ()

bool getFfbActive ()

void exti (uint16_t GPIO_Pin)

void errorCallback (const Error &error, bool cleared)

void systick ()

- Public Member Functions inherited from FFBoardMain
const ClassType getClassType () override
 returns the used classchooser selection id of this instance More...

 FFBoardMain ()

virtual ~FFBoardMain ()

virtual void update ()

virtual void cdcRcv (char *Buf, uint32_t *Len)

virtual void cdcRcvReady (uint8_t itf)

- Public Member Functions inherited from ChoosableClass
virtual ~ChoosableClass ()

uint16_t getSelectionID ()

- Public Member Functions inherited from CommandHandler
 CommandHandler (const char *clsname, uint16_t clsid, uint8_t instance=0)

virtual ~CommandHandler ()

virtual bool hasCommands ()

virtual void setCommandsEnabled (bool enable)

void registerCommands ()

virtual CommandStatus internalCommand (const ParsedCommand &cmd, std::vector< CommandReply > &replies)

virtual std::string getCommandsHelpstring ()

virtual std::string getCsvHelpstring ()

virtual uint8_t getCommandHandlerInstance ()

void broadcastCommandReply (CommandReply reply, uint32_t cmdId, CMDtype type)

void sendCommandReplyAsync (CommandReply reply, uint32_t cmdId, CMDtype type, CommandInterface *interface=nullptr)

virtual uint16_t getCommandHandlerID ()

virtual CmdHandlerInfo * getCommandHandlerInfo ()

virtual bool isValidCommandId (uint32_t cmdid, uint32_t ignoredFlags=0, uint32_t requiredFlag=0)

virtual CmdHandlerCommanddef * getCommandFromName (const std::string &cmd, uint32_t ignoredFlags=0)

virtual CmdHandlerCommanddef * getCommandFromId (const uint32_t id, uint32_t ignoredFlags=0)

template<typename ID >
void registerCommand (const char *cmd, const ID cmdid, const char *help=nullptr, uint32_t flags=0)

- Public Member Functions inherited from cpp_freertos::Thread
 Thread (const std::string Name, uint16_t StackDepth, UBaseType_t Priority)

 Thread (const char *Name, uint16_t StackDepth, UBaseType_t Priority)

 Thread (uint16_t StackDepth, UBaseType_t Priority)

bool Start ()

virtual ~Thread ()

TaskHandle_t GetHandle ()

void Suspend ()

void Resume ()

void ResumeFromISR ()

void Notify ()

void NotifyFromISR ()

uint32_t WaitForNotification (TickType_t Timeout=portMAX_DELAY)

UBaseType_t GetPriority ()

UBaseType_t GetPriorityFromISR ()

void SetPriority (UBaseType_t NewPriority)

std::string GetName ()

char * GetName ()

- Public Member Functions inherited from UsbHidHandler
 UsbHidHandler ()

virtual ~UsbHidHandler ()

virtual void hidOut (uint8_t report_id, hid_report_type_t report_type, uint8_t const *buffer, uint16_t bufsize)

virtual uint16_t hidGet (uint8_t report_id, hid_report_type_t report_type, uint8_t *buffer, uint16_t reqlen)

void registerHidCallback ()

void transferComplete (uint8_t itf, uint8_t const *report, uint8_t len)


Static Public Attributes

static ClassIdentifier info

- Static Public Attributes inherited from FFBoardMain
static ClassIdentifier info ={.name = "Basic (Failsafe)" ,.id=0}

- Static Public Attributes inherited from ChoosableClass
static ClassIdentifier info

- Static Public Attributes inherited from CommandHandler
static bool logEnabled = true

- Static Public Attributes inherited from UsbHidHandler
static UsbHidHandler * globalHidHandler = nullptr

static uint8_t * hid_desc = nullptr


Private Attributes

std::shared_ptr< EffectsCalculator > effects_calc = std::make_shared<EffectsCalculator>()

std::shared_ptr< EffectsControlItf > ffb = std::make_shared<HidFFB>(effects_calc,2)


Additional Inherited Members

- Static Public Member Functions inherited from FFBHIDMain
static bool isCreatable ()

- Static Public Member Functions inherited from FFBoardMain
static bool isCreatable ()

- Static Public Member Functions inherited from ChoosableClass
static bool isCreatable ()

- Static Public Member Functions inherited from CommandHandler
static void logSerial (std::string string)
 Send a log formatted sequence. More...

static void logSerialDebug (std::string string)
 Send a log formatted sequence if debug is on. More...

static bool logsEnabled ()

static void setLogsEnabled (bool enabled)

static uint32_t getClassIdFromName (const char *name)

static const char * getClassNameFromId (const uint32_t id)

static CommandHandler * getHandlerFromHandlerId (const uint16_t cmdhandlerID)

static CommandHandler * getHandlerFromId (const uint16_t id, const uint8_t instance=0xFF)

static CommandHandler * getHandlerFromClassName (const char *name, const uint8_t instance=0xFF)

static std::vector< CommandHandler * > getHandlersFromClassName (const char *name)

static std::vector< CommandHandler * > getHandlersFromId (const uint16_t id)

static bool isInHandlerList (CommandHandler *handler)

static std::string getAllHelpstrings ()

static std::vector< CommandHandler * > & getCommandHandlers ()

template<typename TVal >
static CommandStatus handleGetSet (const ParsedCommand &cmd, std::vector< CommandReply > &replies, TVal &value)

template<typename TVal , class cls , class cls1 >
static CommandStatus handleGetSetFunc (const ParsedCommand &cmd, std::vector< CommandReply > &replies, TVal &value, void(cls1::*setfunc)(TVal), cls *obj)

template<typename TVal , class cls , class cls1 , class cls2 >
static CommandStatus handleGetFuncSetFunc (const ParsedCommand &cmd, std::vector< CommandReply > &replies, TVal(cls1::*getfunc)(), void(cls2::*setfunc)(TVal), cls *obj)

template<typename TVal , class cls , class cls1 >
static CommandStatus handleGetFuncSet (const ParsedCommand &cmd, std::vector< CommandReply > &replies, TVal &value, TVal(cls1::*getfunc)(), cls *obj)

- Static Public Member Functions inherited from cpp_freertos::Thread
static void Yield ()

static void StartScheduler ()

static void EndScheduler ()

- Static Public Member Functions inherited from UsbHidHandler
static void setHidDesc (const uint8_t *desc)

static const uint8_t * getHidDesc ()

- Public Attributes inherited from FFBoardMain
std::unique_ptr< FFBoardMainCommandThread > commandThread

std::unique_ptr< CDC_CommandInterface > cdcCmdInterface = std::make_unique<CDC_CommandInterface>()

ErrorPrinter errorPrinter

SystemCommands systemCommands
 System command handler. More...

std::unique_ptr< UART_CommandInterface > uartCmdInterface = std::make_unique<UART_CommandInterface>(115200)

- Protected Member Functions inherited from CommandHandler
void setInstance (uint8_t instance)

virtual void addCommandHandler ()

virtual void removeCommandHandler ()

- Protected Member Functions inherited from cpp_freertos::Thread
virtual void Cleanup ()

void Delay (const TickType_t Delay)

void DelayUntil (const TickType_t Period)

void ResetDelayUntil ()

bool Wait (ConditionVariable &Cv, Mutex &CvLock, TickType_t Timeout=portMAX_DELAY)

- Static Protected Member Functions inherited from CommandHandler
static std::vector< uint16_t > & getCommandHandlerIds ()

- Protected Attributes inherited from FFBHIDMain
std::shared_ptr< EffectsControlItf > ffb

std::shared_ptr< EffectsCalculator > effects_calc

uint8_t axisCount =0

- Protected Attributes inherited from FFBoardMain
std::unique_ptr< USBdevice > usbdev

- Protected Attributes inherited from ChoosableClass
uint16_t selectionId
 Should only be written by ClassChooser during creation. More...

- Protected Attributes inherited from CommandHandler
bool commandsEnabled = true

std::vector< CmdHandlerCommanddef > registeredCommands

CmdHandlerInfo cmdHandlerInfo

- Static Protected Attributes inherited from FFBoardMain
static char cdcbuf []


Detailed Description

Definition at line 15 of file FFBJoystick.h.

Constructor & Destructor Documentation

◆ FFBJoystick()

FFBJoystick::FFBJoystick ( )

Definition at line 25 of file FFBJoystick.cpp.

◆ ~FFBJoystick()

FFBJoystick::~FFBJoystick ( )
virtual

Definition at line 31 of file FFBJoystick.cpp.

Member Function Documentation

◆ getInfo()

const ClassIdentifier FFBJoystick::getInfo ( )
virtual

Implements FFBHIDMain.

Definition at line 20 of file FFBJoystick.cpp.

◆ usbInit()

void FFBJoystick::usbInit ( )
overridevirtual

Called during the startup Should initialize a USBdevice and call registerUsb()

Implements FFBHIDMain.

Definition at line 37 of file FFBJoystick.cpp.

Member Data Documentation

◆ effects_calc

std::shared_ptr<EffectsCalculator> FFBJoystick::effects_calc = std::make_shared<EffectsCalculator>()
private

Definition at line 26 of file FFBJoystick.h.

◆ ffb

std::shared_ptr<EffectsControlItf> FFBJoystick::ffb = std::make_shared<HidFFB>(effects_calc,2)
private

Definition at line 27 of file FFBJoystick.h.

◆ info

ClassIdentifier FFBJoystick::info
static
Initial value:
= {
.name = "FFB Joystick (2 Axis)" ,
.id=CLSID_MAIN_FFBJOY,
}

Definition at line 20 of file FFBJoystick.h.

The documentation for this class was generated from the following files:
