SelectableInputs Class Reference

#include <SelectableInputs.h>

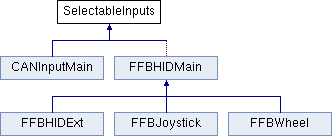

Inheritance diagram for SelectableInputs:

Public Member Functions
	SelectableInputs (const ClassChooser< ButtonSource > &btn_chooser, const ClassChooser< AnalogSource > &analog_chooser)
virtual	~SelectableInputs ()
virtual void	setBtnTypes (uint16_t btntypes)
virtual void	addBtnType (uint16_t id)
virtual void	clearBtnTypes ()
virtual void	setAinTypes (uint16_t aintypes)
virtual void	addAinType (uint16_t id)
virtual void	clearAinTypes ()
virtual uint8_t	getButtonValues (uint64_t &values)
virtual std::vector< int32_t > *	getAnalogValues ()

Protected Attributes
std::vector< std::unique_ptr< ButtonSource > >	btns
std::vector< std::unique_ptr< AnalogSource > >	analog_inputs
cpp_freertos::BinarySemaphore	sourcesSem = cpp_freertos::BinarySemaphore(true)
uint16_t	btnsources = 0
uint16_t	ainsources = 0
std::vector< int32_t >	analogsources_buf
ClassChooser< ButtonSource >	btn_chooser
ClassChooser< AnalogSource >	analog_chooser

Detailed Description

Helper class with common functions to manage input sources

Definition at line 17 of file SelectableInputs.h.

Constructor & Destructor Documentation

SelectableInputs()

SelectableInputs::SelectableInputs	(	const ClassChooser< ButtonSource > &	btn_chooser,
		const ClassChooser< AnalogSource > &	analog_chooser
	)

Definition at line 10 of file SelectableInputs.cpp.

~SelectableInputs()

SelectableInputs::~SelectableInputs ( )

virtual

Definition at line 16 of file SelectableInputs.cpp.

Member Function Documentation

addAinType()

void SelectableInputs::addAinType ( uint16_t  id )

virtual

Definition at line 75 of file SelectableInputs.cpp.

addBtnType()

void SelectableInputs::addBtnType ( uint16_t  id )

virtual

Definition at line 43 of file SelectableInputs.cpp.

clearAinTypes()

void SelectableInputs::clearAinTypes ( )

virtual

Definition at line 55 of file SelectableInputs.cpp.

clearBtnTypes()

void SelectableInputs::clearBtnTypes ( )

virtual

Definition at line 22 of file SelectableInputs.cpp.

getAnalogValues()

std::vector< int32_t > * SelectableInputs::getAnalogValues ( )

virtual

Gets analog values from all analog sources

Definition at line 105 of file SelectableInputs.cpp.

getButtonValues()

uint8_t SelectableInputs::getButtonValues ( uint64_t &  values )

virtual

Gets button values from all button sources

Definition at line 89 of file SelectableInputs.cpp.

setAinTypes()

void SelectableInputs::setAinTypes ( uint16_t  aintypes )

virtual

Definition at line 61 of file SelectableInputs.cpp.

setBtnTypes()

void SelectableInputs::setBtnTypes ( uint16_t  btntypes )

virtual

Definition at line 28 of file SelectableInputs.cpp.

Member Data Documentation

ainsources

uint16_t SelectableInputs::ainsources = 0

protected

Definition at line 41 of file SelectableInputs.h.

analog_chooser

ClassChooser<AnalogSource> SelectableInputs::analog_chooser

protected

Definition at line 46 of file SelectableInputs.h.

analog_inputs

std::vector<std::unique_ptr<AnalogSource> > SelectableInputs::analog_inputs

protected

Definition at line 36 of file SelectableInputs.h.

analogsources_buf

std::vector<int32_t> SelectableInputs::analogsources_buf

protected

Definition at line 43 of file SelectableInputs.h.

btn_chooser

ClassChooser<ButtonSource> SelectableInputs::btn_chooser

protected

Definition at line 45 of file SelectableInputs.h.

btns

std::vector<std::unique_ptr<ButtonSource> > SelectableInputs::btns

protected

Definition at line 35 of file SelectableInputs.h.

btnsources

uint16_t SelectableInputs::btnsources = 0

protected

Definition at line 40 of file SelectableInputs.h.

sourcesSem

cpp_freertos::BinarySemaphore SelectableInputs::sourcesSem = cpp_freertos::BinarySemaphore(true)

protected

Definition at line 38 of file SelectableInputs.h.

---

The documentation for this class was generated from the following files:

• SelectableInputs.h
• SelectableInputs.cpp
